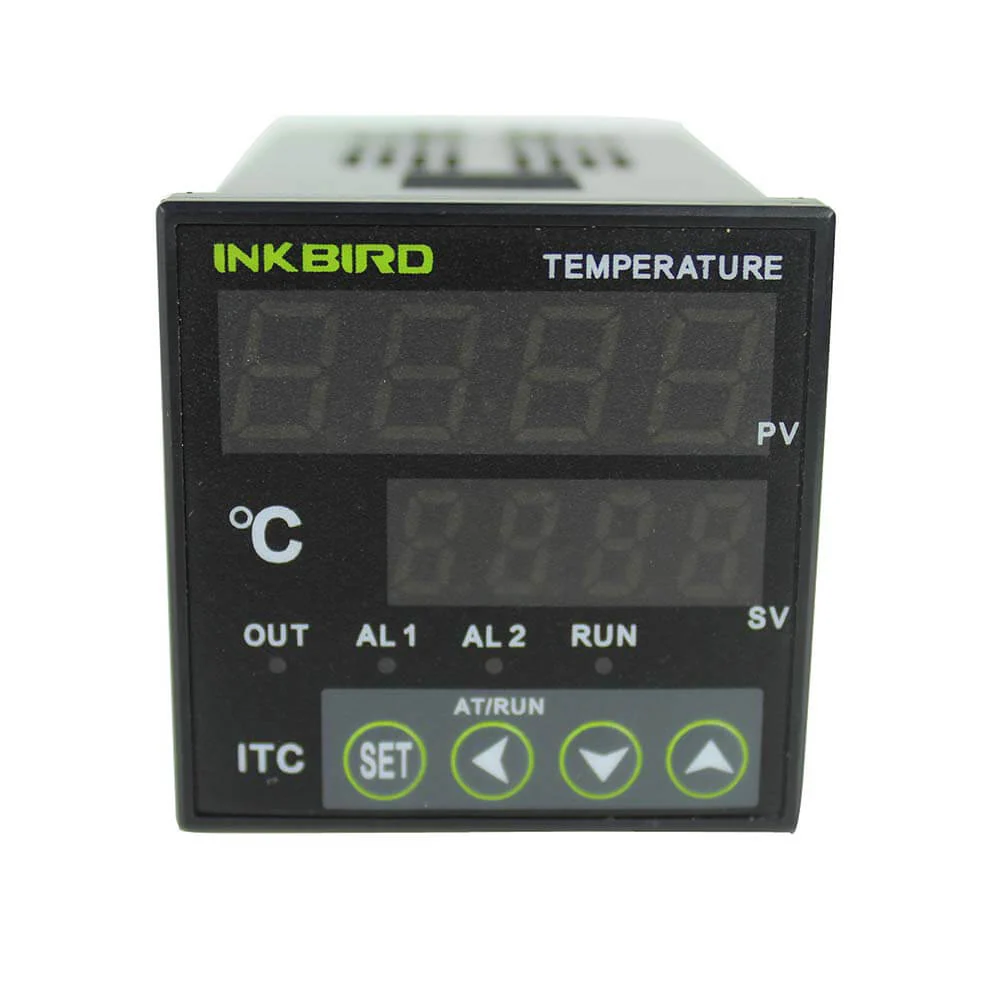

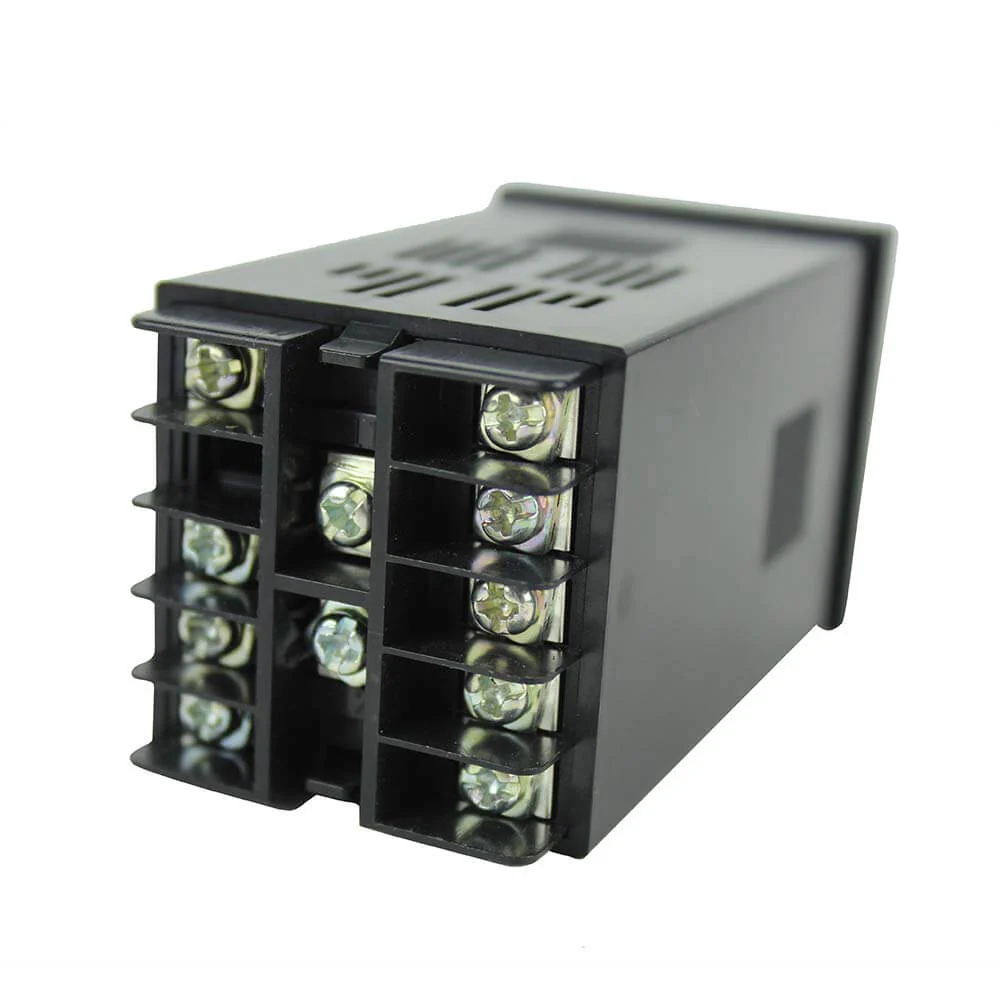

PID Temperature Controller ITC-100 Series
Available models:
- ITC-100VH --- One SSR output + One Relay Alarm Output; AC100-240V.
- ITC-100RH --- One Relay output + One Relay Alarm Output; AC100-240V.
Main Features:
- Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm
- Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
- Power Supply Voltage: AC 100-240V ±10% 50/60Hz
- Main Output： Voltage Pulses Output (ITC-100VH): DC 12V, 30mA;
- Main Output： Relay Contact Output (ITC-100RH): AC250V 3A (Resistive load) ON/NC.
- Alarm 1 AC250V 3A (Resistive load) ON/NC
- High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS
- PID and ON/OFF Control Mode, High Standard Self-adjusting Function
- Multiple Outputs and Alarm Modes
- Build-in Adjustable Digital Filter Reduce Interference
- The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability
- High Luminance, 0.39” height LED display, Anti-glare panel
- Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption
Package Included:
- 1x Inkbird ITC-100VH Controller

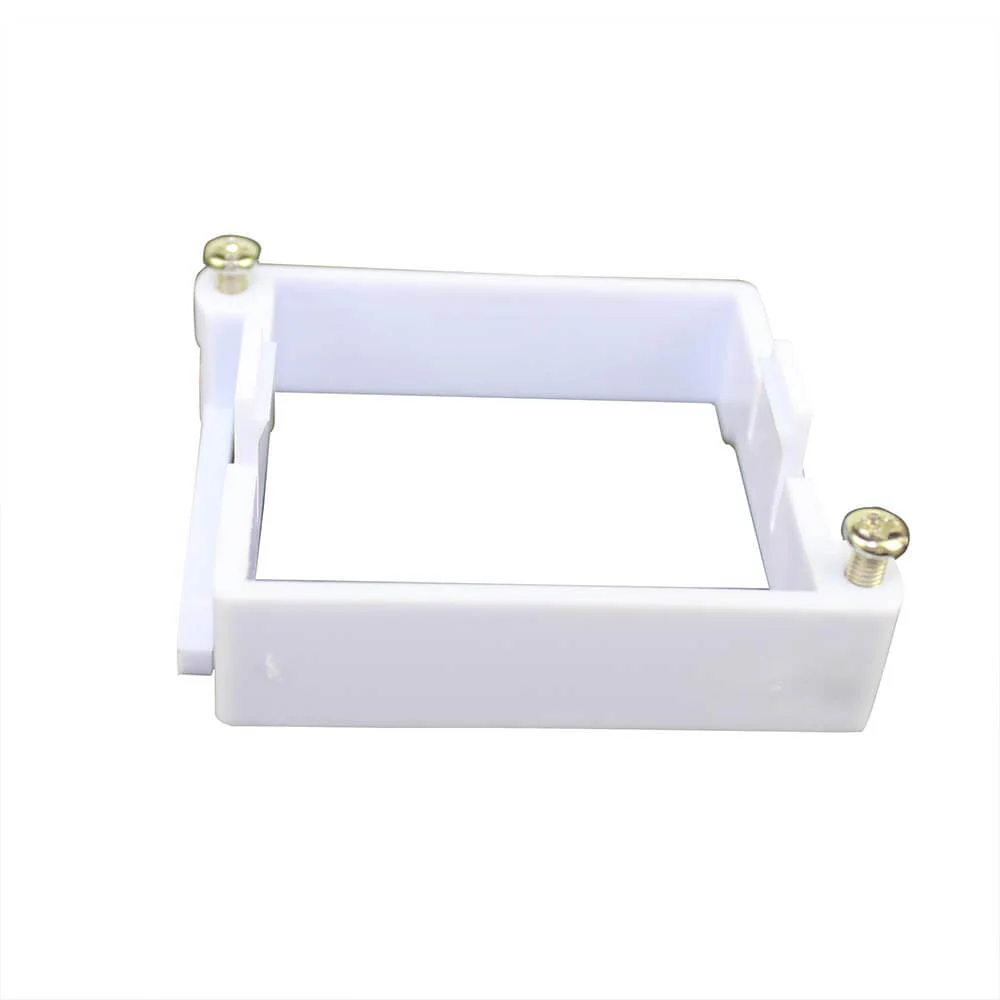

- 1x Mounting Bracket
- 1x Manual
Review Video:
Select Model
From $9.00
Original: $29.99
-70%PID Temperature Controller ITC-100 Series—
$29.99
$9.00
Description
Available models:
- ITC-100VH --- One SSR output + One Relay Alarm Output; AC100-240V.
- ITC-100RH --- One Relay output + One Relay Alarm Output; AC100-240V.
Main Features:
- Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm
- Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
- Power Supply Voltage: AC 100-240V ±10% 50/60Hz
- Main Output： Voltage Pulses Output (ITC-100VH): DC 12V, 30mA;
- Main Output： Relay Contact Output (ITC-100RH): AC250V 3A (Resistive load) ON/NC.
- Alarm 1 AC250V 3A (Resistive load) ON/NC
- High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS
- PID and ON/OFF Control Mode, High Standard Self-adjusting Function
- Multiple Outputs and Alarm Modes
- Build-in Adjustable Digital Filter Reduce Interference
- The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability
- High Luminance, 0.39” height LED display, Anti-glare panel
- Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption
Package Included:
- 1x Inkbird ITC-100VH Controller
- 1x Mounting Bracket
- 1x Manual
